Trunk Button retrofit

undeath324 · 05-28-2015, 03:55 PM

hi do you know about this button fem body pin? 3 cable:

1-) +12v (lighting key positive cable)
2-) -
3-) it is fem body connect but i dont know about pin?

Name: user76276_pic159764_1371454782.jpg
Views: 23109
Size: 92.4 KB

Name: user76276_pic159764_1371454782.jpg
Views: 23109
Size: 92.4 KB

Name: user76276_pic159763_1371454782.jpg
Views: 15277
Size: 46.0 KB

Name: user76276_pic159765_1371454782.jpg
Views: 15171
Size: 43.0 KB

Fluffy bastard · 05-28-2015, 04:44 PM

37

undeath324 · 05-29-2015, 04:21 PM

oo thanks and this program is bmw TIS? i dont find f30 workshop document

fiolexmephisto · 10-31-2015, 01:09 PM

Quote:

Originally Posted by undeath324

oo thanks and this program is bmw TIS? i dont find f30 workshop document

Hello there, I am also from Istanbul and I need some info about what you did, can you help me? (Parça numarası falan alabilirsem iyi olur)

963mw · 10-31-2015, 05:24 PM

So wait this is all you need to add the trunk button? Connecting +, - and FEM?

963mw · 01-13-2016, 06:02 PM

Quote:

Originally Posted by undeath324

hi do you know about this button fem body pin? 3 cable:

1-) +12v (lighting key positive cable)
2-) -
3-) it is fem body connect but i dont know about pin?

Attachment 1217646

Attachment 1217647

Attachment 1217648

Any word whether this worked or not?

ethern0t · 12-25-2016, 07:33 PM

Can someone explain a litle more?
Looking to retrofit This one.
Thanks

david51 · 02-04-2017, 06:37 AM

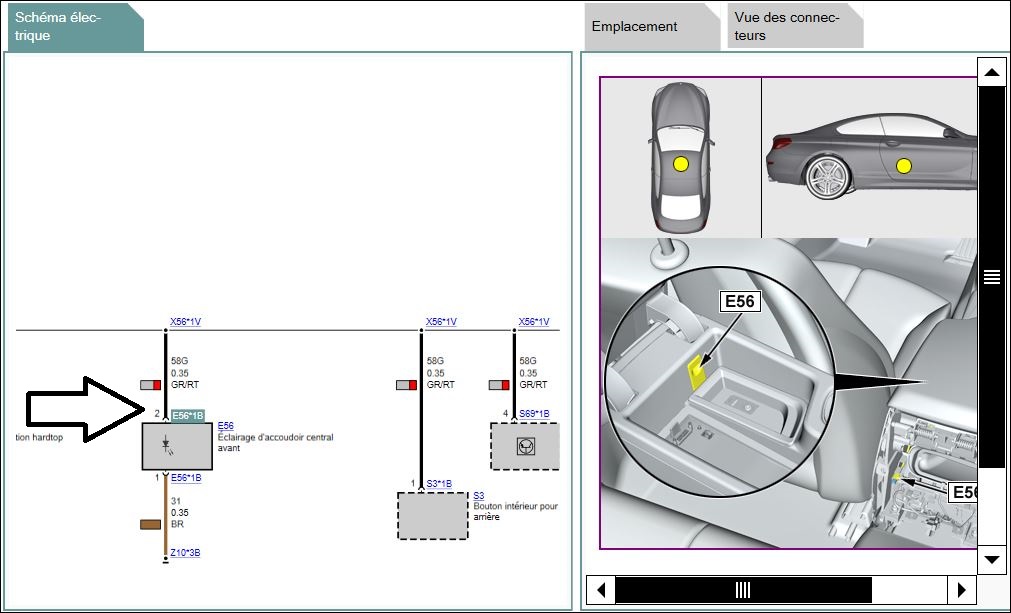

Here are the connections for the safe opening switch

Zebra1 · 02-06-2017, 05:14 PM

Quote:

Originally Posted by ethern0t

Can someone explain a litle more?
Looking to retrofit This one.
Thanks

You can take a look at the BimmerTech F30 Power Trunk Retrofit.

Quote:

Basically, you are replacing the tension spring (with some new motorized components), replacing the latch system ( with motorized components), adding the new switch and then supplying power and ground.

BeoG30LCI · 02-13-2017, 04:15 AM

Quote:

Originally Posted by david51

Here are the connections for the safe opening switch

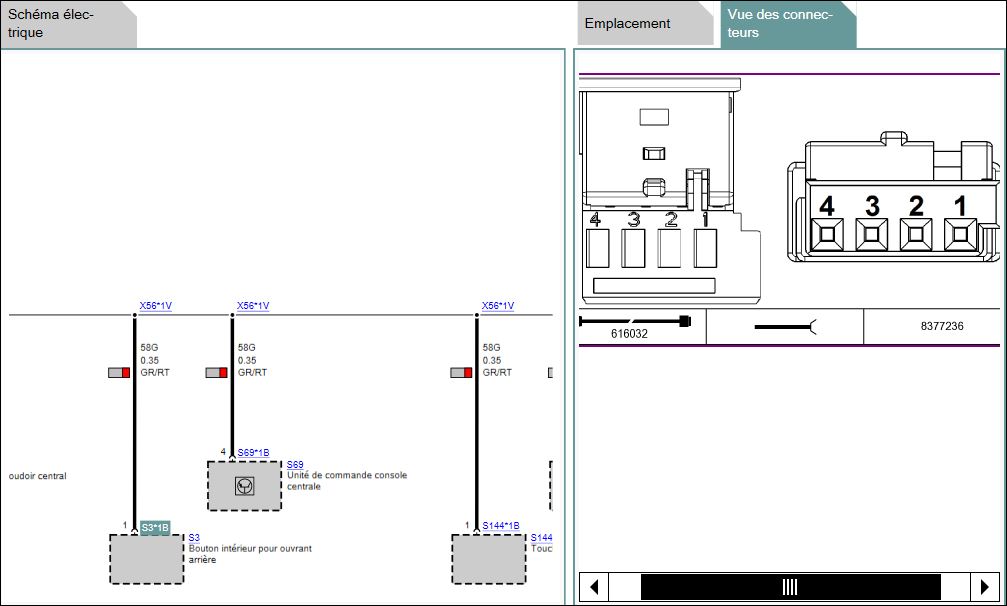

Help me (send me photos) how to locate and connect PIN 12v (lighting key positive cable). I couldn't locate the X56*1V.
Thank you guys!

david51 · 02-13-2017, 05:30 AM

Quote:

Originally Posted by F32Airbus

Help me (send me photos) how to locate and connect PIN 12v (lighting key positive cable). I couldn't locate the X56*1V.
Thank you guys!

You can connect to slot # 2 (gray / red)

BeoG30LCI · 02-13-2017, 08:28 AM

Quote:

Originally Posted by david51

You can connect to slot # 2 (gray / red)

So please confirm:
- PIN 1 : +12V
- PIN 2 : Ground

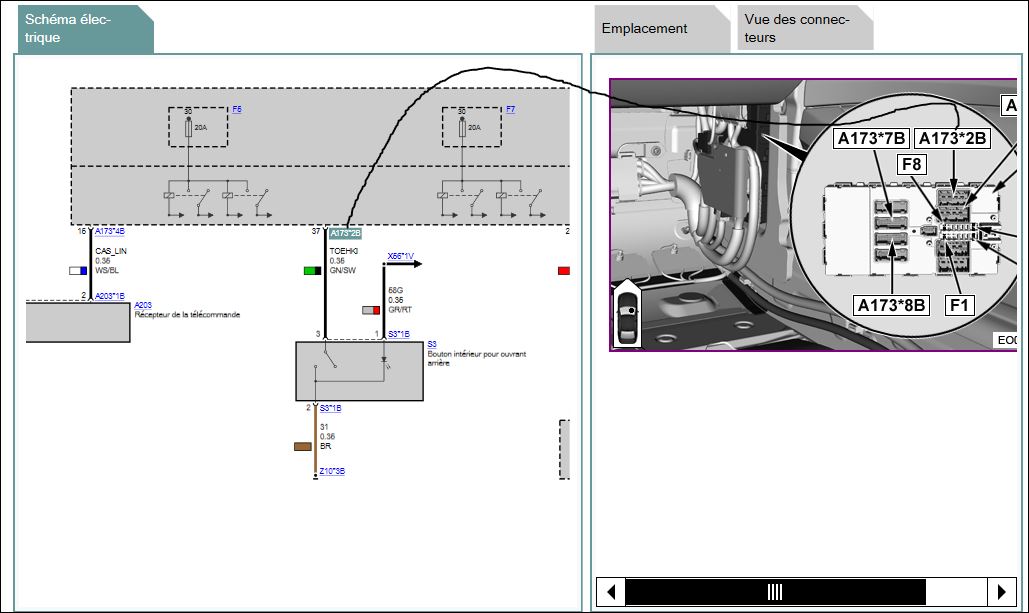

- PIN 3 : connect PIN 37 of FEM

Thank you David!

david51 · 02-13-2017, 09:55 AM

Quote:

Originally Posted by F32Airbus

So please confirm:
- PIN 1 : +12V
- PIN 2 : Ground
- PIN 3 : connect PIN 37 of FEM

Thank you David!

yes

BeoG30LCI · 02-15-2017, 02:01 AM

David

I open the center console but there is no slot number 2 with color Gray/Red, only 1 Black and 1 Purple.

atzebmw · 02-15-2017, 06:30 AM

Quote:

Originally Posted by F32Airbus

David

I open the center console but there is no slot number 2 with color Gray/Red, only 1 Black and 1 Purple.

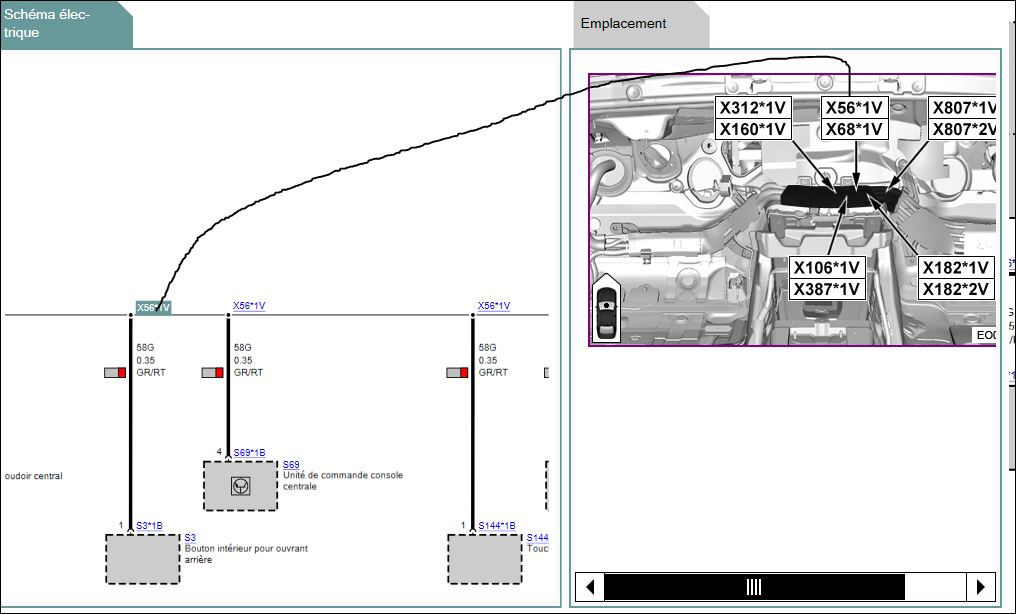

For F32 the X56*1V is located at another position.

david51 · 02-15-2017, 07:26 AM

Quote:

Originally Posted by F32Airbus

David

I open the center console but there is no slot number 2 with color Gray/Red, only 1 Black and 1 Purple.

See the white arrow

BeoG30LCI · 02-15-2017, 07:44 AM

Thank you David!

david51 · 02-15-2017, 07:57 AM

Quote:

Originally Posted by F32Airbus

Thank you David!

BeoG30LCI · 02-16-2017, 06:23 AM

One last stupid question:
Should I connect pin 1 to Gray/Red and pin 2 to Brown? It is easier for wiring...

david51 · 02-16-2017, 12:04 PM

Quote:

Originally Posted by F32Airbus

One last stupid question:
Should I connect pin 1 to Gray/Red and pin 2 to Brown? It is easier for wiring...

Yes

963mw · 03-05-2017, 11:31 AM

Any word on this?

graphys · 05-26-2017, 12:47 PM

Can anyone shared button and button socket part number?

Regards.
